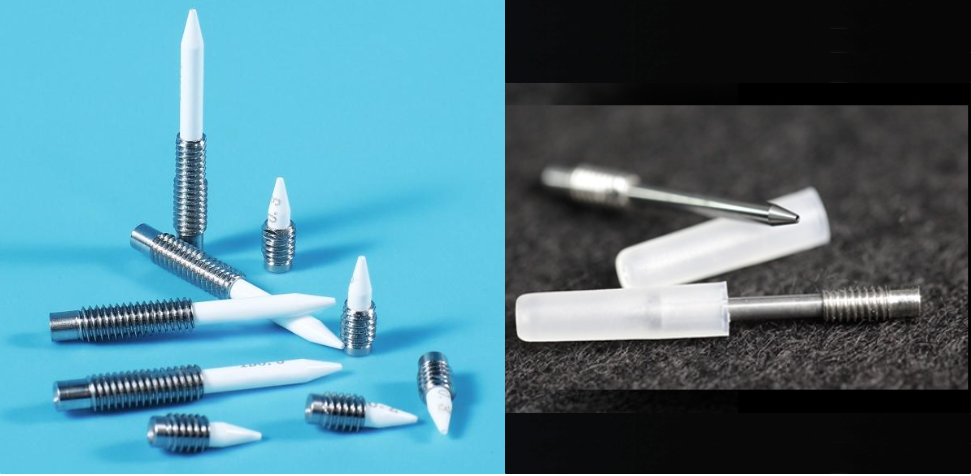

Ceramic Dispensing Nozzle

  • The base is constructed from stainless steel, while the tip is made of ceramic. The inner diameter (ID) can be as small as 20 micrometers.

  • ID can be 20μm

    - Body is made by SUS, and tip is made by Ceramics.

    - The inner features inside the ceramics is designed to optimize the fluid flow and ease tip cleaning.
    - The high hardness (up to 2000HV) makes the tip not prone to wear.

  • The base is constructed from stainless steel, while the tip is made of ceramic. The inner diameter (ID) can be as small as 20 micrometers.

SUNTECH is specialized in designing and manufacturing diverse dispensing nozzles for die bonding machines (chipping machines). The materials for the dispensing nozzles are diverse, including stainless steel, tungsten steel, and ceramic. They are currently widely applied in die bonding machines from brands such as ESEC (BESI) and ASM.

Compared to metal materials, ceramic dispensing nozzles exhibit superior in internal surface roughness and have a smoother surface. While metal dispensing nozzles have a straight internal structure, ceramic dispensing nozzles can achieve a full conical internal design. This unique design ensures a smoother dispensing process, effectively solving glue sticking issues in practical production scenarios, thereby significantly enhancing the stability and precision of the dispensing process.
