Manufacturing of Ceramic Ball Heads and Liners for Total Hip Arthroplasty (THA)

Total Hip Arthroplasty (THA), hailed as "one of the most successful orthopedic surgeries of the 20th century", has long been a vital solution for middle-aged and elderly patients suffering from hip dysfunction caused by degenerative conditions such as osteoarthritis, rheumatoid arthritis, and avascular necrosis of the femoral head. THA addresses this issue by replacing the worn articular surfaces, significantly improving joint mobility and weight-bearing capacity. It has also demonstrated remarkable efficacy in the treatment of post-traumatic arthritis secondary to acetabular fractures, confirming its long-term stability in complex trauma repair. Notably, THA's indications have expanded beyond traditional degenerative conditions to include avascular necrosis of the femoral head and hip dysplasia  in younger patients. Two critical components of THA are the ceramic head and Liner.

• The ceramic head and liner of a total hip arthroplasty (THA) are the core load-bearing and friction-reducing components of the joint implant. Their manufacturing must balance biocompatibility, mechanical stability, and ultra-low friction properties. Currently, the mainstream materials used are zirconia-toughened alumina (ZTA), high-purity alumina (Al₂O₃), and zirconia (ZrO₂) ceramics.
  The following section details their manufacturing process and technical highlights across four core stages:
• Material Selection
• Core Preparation
• Precision Machining
• Quality Inspection

I.Material Selection and Pretreatment

The performance of ceramic materials directly determines the service life and clinical safety of implants. Therefore, rigorous screening and pretreatment of raw materials are essential to ensure the stability of subsequent manufacturing processes.

1.Core Material Selection

    Zirconia-Toughened Alumina (ZTA): By incorporating 5%–15% zirconia particles into an alumina matrix, the phase transformation toughening effect of zirconia markedly improves the ceramic’s fracture toughness and impact resistance. This addresses the brittleness limitation of pure alumina ceramics, making ZTA ideal for younger patients with higher activity levels.

2.Raw Material Pretreatment

The purity, particle size, and uniformity of raw material powders directly affect the densification and final properties of the ceramic green body. The pretreatment process includes the following steps:

Purification and Impurity Removal: Processes such as chemical precipitation and vacuum calcination are employed to eliminate impurities (e.g., iron and silicon) from the raw materials. This prevents impurities from inducing defects that would compromise the material’s mechanical properties.

Ultra-fine Grinding: Air classifiers are used to mill the raw material powders down to the submicron level (particle size: 0.5–2 μm). Strict control over particle size distribution is implemented to ensure uniformity and enhance the sintering activity of the powders.

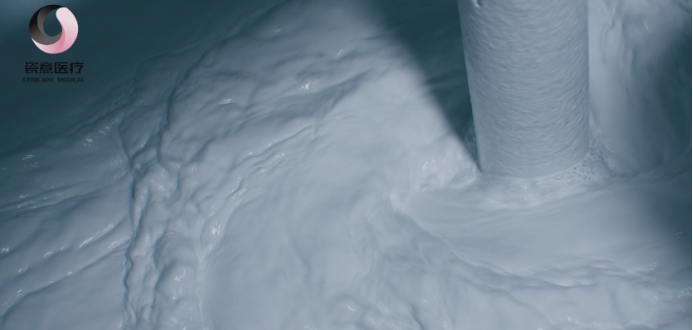

Mixing: Multi-component powders are homogenously mixed using high-speed mixers, ball mills, or spray granulators to ensure uniform dispersion of the toughening phase within the matrix.

II.Core Preparation Processes: Green Body Forming and Sintering

The shaping and sintering of ceramic femoral heads and liners are key processes that determine their density, grain size, and material mechanical properties. Manufacturing process parameters must be strictly controlled to avoid defects such as green body porosity and cracks.

Green Body Forming:

The goal of forming is to obtain a green body with a shape close to the final product and uniform density. Mainstream processes include dry pressing, isostatic pressing, and injection molding. Among these, isostatic pressing has become the preferred process for high-end ceramic implants due to its superior forming quality.

Isostatic Pressing (Cold Isostatic Pressing (CIP) + Hot Isostatic Pressing (HIP)

Suitable for components with complex curved surfaces such as femoral heads and liners, the process is as follows:

Granulation: The pretreated powder is mixed with a small amount of binder (e.g., polyvinyl alcohol) and granulated via spray drying to obtain spherical particles with good fluidity.

Molding: The particles are loaded into an elastic mold (e.g., a rubber mold) and sealed to ensure no air remains inside the mold.

Cold Isostatic Pressing: The loaded powder is placed in a cold isostatic press and subjected to uniform pressure from all directions at 100–200 MPa, causing the particles to bond tightly and form a high-density green body.

Debinding: The cold-isostatically pressed green body is placed in a debinding furnace and heated slowly at 200–600 °C to remove the binder gradually. This step prevents rapid binder decomposition, which would generate gases and cause cracking in the green body.

1. Sintering Process

The purpose of sintering is to induce particle diffusion and fusion within the green body through high-temperature heating, eliminating porosity and forming a dense ceramic matrix. Mainstream processes include atmospheric pressure sintering, vacuum sintering, and hot isostatic pressing (HIP) sintering.

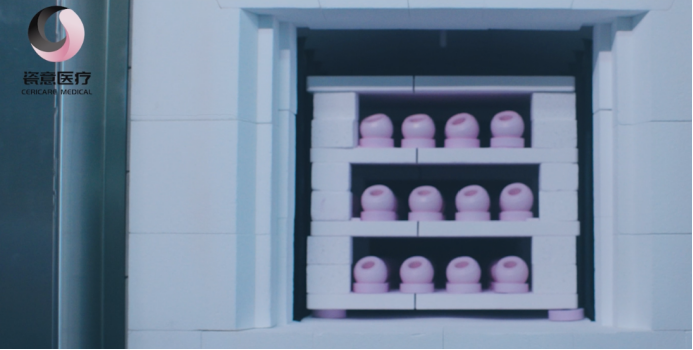

Atmospheric Pressure Sintering: The debindered green body is placed in a high-temperature

furnace and sintered for several hours in an air or inert gas atmosphere at 1500–1800 °C. This causes particle boundaries to fuse and the green body to densify. This process is cost-effective but susceptible to atmospheric influence, which may lead to oxidation or porosity defects. It is suitable for mid-to-low-end ceramic implants.

Vacuum Sintering: Sintering is performed in a vacuum environment, which effectively prevents contamination of the green body by gaseous impurities, reduces porosity and oxidation defects, and improves the density and mechanical properties of the ceramic. It is the mainstream sintering process for high-purity alumina ceramics and ZTA ceramics.

Hot Isostatic Pressing (HIP): The ceramic green body from atmospheric pressure sintering is placed in a hot isostatic press and further sintered in an inert gas atmosphere under high temperature and high pressure. This process can completely eliminate microporosity within the green body, achieving a near-100% density, and significantly enhance the fracture toughness and wear resistance of the ceramic. It is a key strengthening process for high-end zirconia ceramics and ZTA ceramics.

III.Precision Machining

The sintered ceramic body must undergo precision machining to meet the dimensional accuracy, surface roughness, and fitting requirements of joint implants. Surface modification is also performed to further improve friction properties and biocompatibility.

Given the extremely high hardness of ceramic materials, conventional machining methods are infeasible, and specialized processing technologies are therefore required. The core processes are as follows:

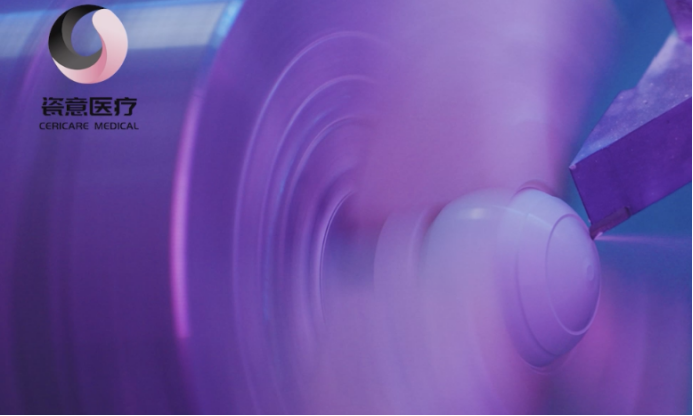

Rough Machining: Diamond grinding wheels are used to grind the ceramic body, removing

excess material and initially shaping the spherical surface of the femoral head and the inner bore of the liner, with dimensional error controlled within 0.1 mm.

Finishing: Diamond micropowder grinding wheels are used for fine grinding, combined with ultrasonic machining technology to enhance surface flatness and dimensional accuracy. The spherical error of the femoral head should be ≤ 0.005 mm, and the roundness error of the liner’s inner bore should be ≤ 0.006 mm.

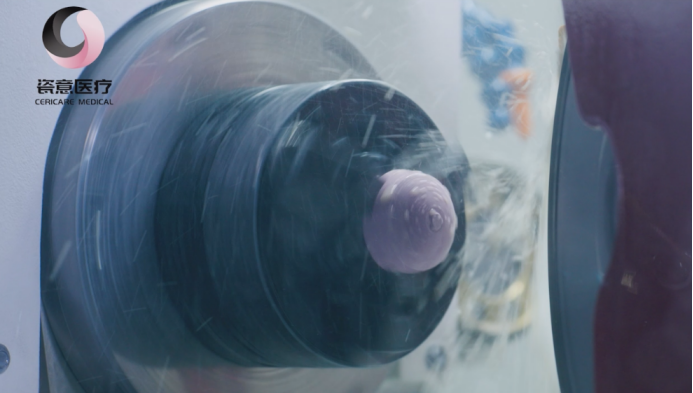

Polishing: Chemical mechanical polishing (CMP) with diamond polishing fluid is employed. Through the synergistic effect of chemical corrosion and mechanical grinding, the ceramic surface roughness (Ra) is reduced to ≤ 0.02 μm, forming an ultra-smooth surface that lowers the friction coefficient and minimizes wear.

As medical devices implanted in the human body, the ceramic femoral heads and liners used in total hip arthroplasty must undergo rigorous quality inspection and performance verification, including appearance and dimensional inspection, mechanical performance testing, friction and wear performance testing, and biocompatibility verification.

The manufacturing of ceramic femoral heads and liners for total hip arthroplasty is a complex systems engineering discipline that integrates materials science, precision machining, high-temperature sintering, and quality control. The core of this process lies in achieving high density, excellent mechanical properties, and superior biocompatibility of ceramic materials through strict raw material selection, precise process control, and comprehensive performance testing. With the continuous advancement of ceramic material technology and processing techniques, the service life of ceramic joint implants is being extended, providing patients with more reliable treatment options.
